Description

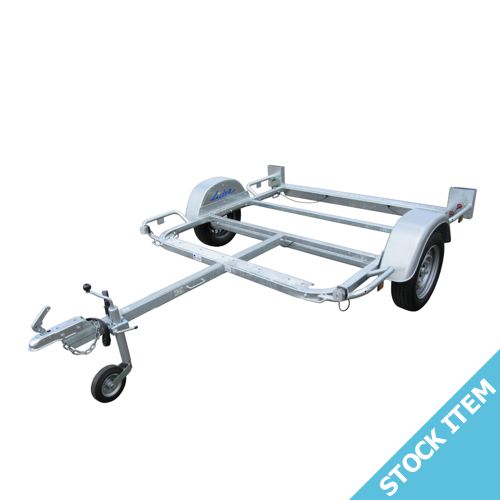

The Lider 39420 is a wide-frame 3 bike motorbike trailer chassis engineered for safe, dependable bike transport across the UK. Featuring a 750kg Maximum Gross Weight with a generous 610kg estimated payload capacity, this un-braked single-axle chassis easily carries up to three large motorbikes.

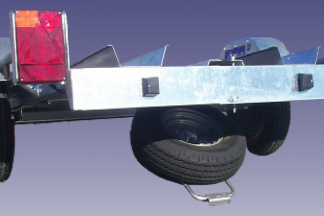

Constructed on a heavy-duty, fully galvanised steel frame, this unit offers maximum protection against rust and harsh British weather. In addition, the rear light lamps are set deep inside a protective recessed steel channel to prevent accidental damage during loading.

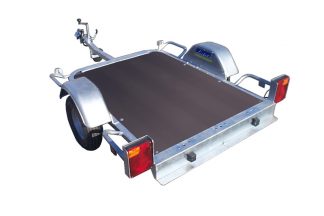

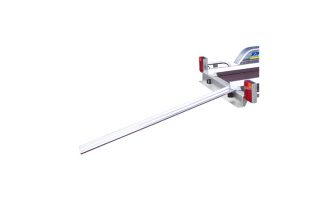

Configure the expansive 178 X167cm chassis deck to your exact requirements with optional non-slip wood flooring, front wheel arches, up to three bike rails, or loading ramps. Please note this listing is for the base chassis only; rails, arches, and ramps are sold separately. Best of all, every Lider trailer includes an official European Certificate of Conformity to meet all legal UK towing rules.
Key Features of the Lider Wide-Frame Motorbike Trailer Chassis 39420
- Wide Transport Base: Expansive $167\text{ cm}$ deck width accommodates up to three motorcycle rails or a full non-slip wood floor.
- Galvanised Protection: Fully hot-dipped galvanised steel frame offers maximum resistance against weather corrosion.
- Protected Rear Lighting: Tail lights are recessed in a protective steel channel to prevent impact during bike loading.
- High Payload Ratio: Carry up to 610kg with a lightweight 140kg unladen chassis frame.
- Standard Jockey Wheel: Fitted as standard with a heavy-duty Ø48mm jockey wheel and 155/70R13 road tyres.
- Full EC Type Approval: Fully compliant with European standards for complete UK road legality.
Customisation & Delivery Support:
Need help selecting the correct combination of bike rails, arches, and ramps for your motorcycle? Call our technical sales team on 01254 681953 for direct advice.
Also, refer to official GOV.UK towing guidelines to check vehicle towing limits and driver licence rules before travelling.
