Knott Multipurpose 1800kg Braked rolling trailer chassis




Knott braked 1800kg single axle type approved Chassis

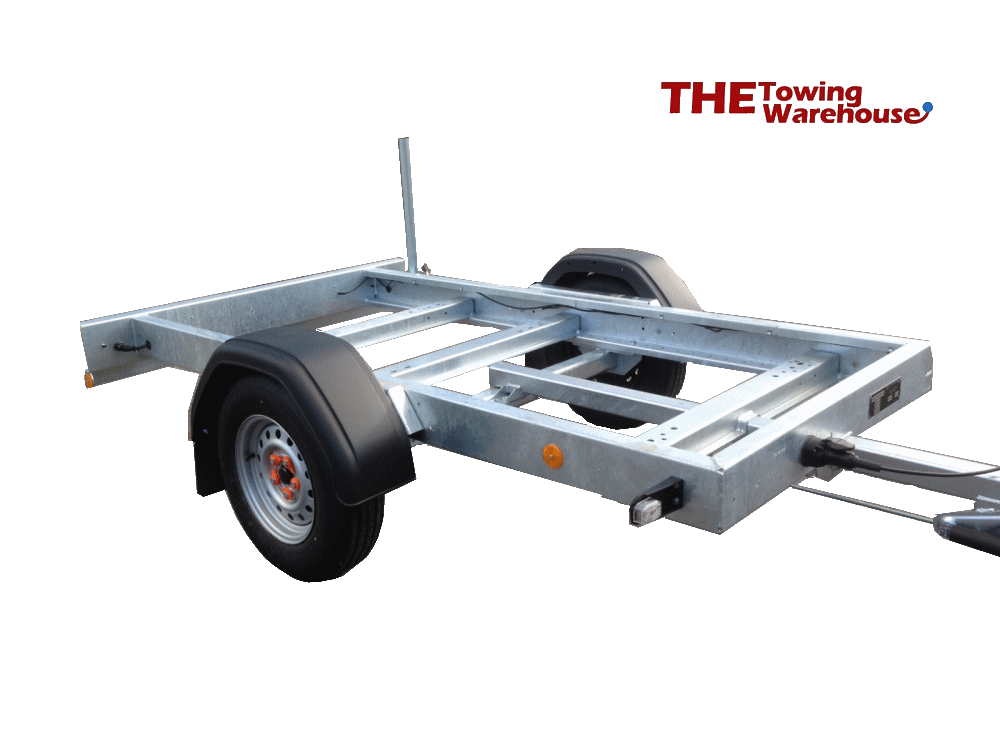

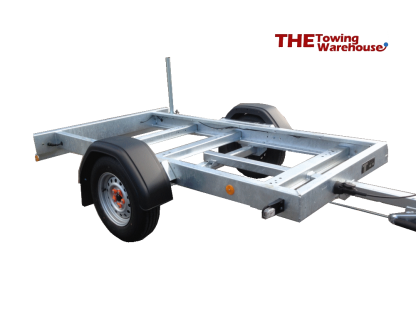

Knott Multipurpose rolling trailer chassis

Fully approved to EC2007/46.

This chassis is part of the Knott chassis range, which can be used as a generator trailer or to carry a gritting machine. The axle and weight bearers are adjustable to suit many other different applications.

This chassis is also available in a twin axle version and various other widths and lengths to suit the buyers needs. However it’s design lend itself to being used as a base chassis for many other special build purposes whilst remaining fully approved and legal.

Standard Specifications:

A – Max. Total Length – 6000mm
B – Load Area Max. Length – 250 (Approx)
C – Load Area Max. Width – 120 (Approx)
D – Max. Total Width – 2100mm

 The above quoted dimensions are for approval purposes,  please contact us to discuss your specific individual requirements.

  • Max. Gross Vehicle Weight (G.V.W) ranging from 750kg to 3500kg
  • 13″ wheels, 155/70/13 tyres
  • Torsion beam Axle and steel hubs with sealed for life bearings
  • Fully welded 1 piece fully galvanised chassis with un-boltable pole drawbar
  • Steel mudguards
  • Full 7 pin Road Lighting
  • Jockey wheel

Nationwide delivery available – either built up or in self-assembly kit form – please call 01254 681953 for a price

Large range of accessories available: spare wheels/carrier, security locks etc

Check out my other items! -we have a huge range of models and over 150 trailers in stock at any time.


Fully warrantied
